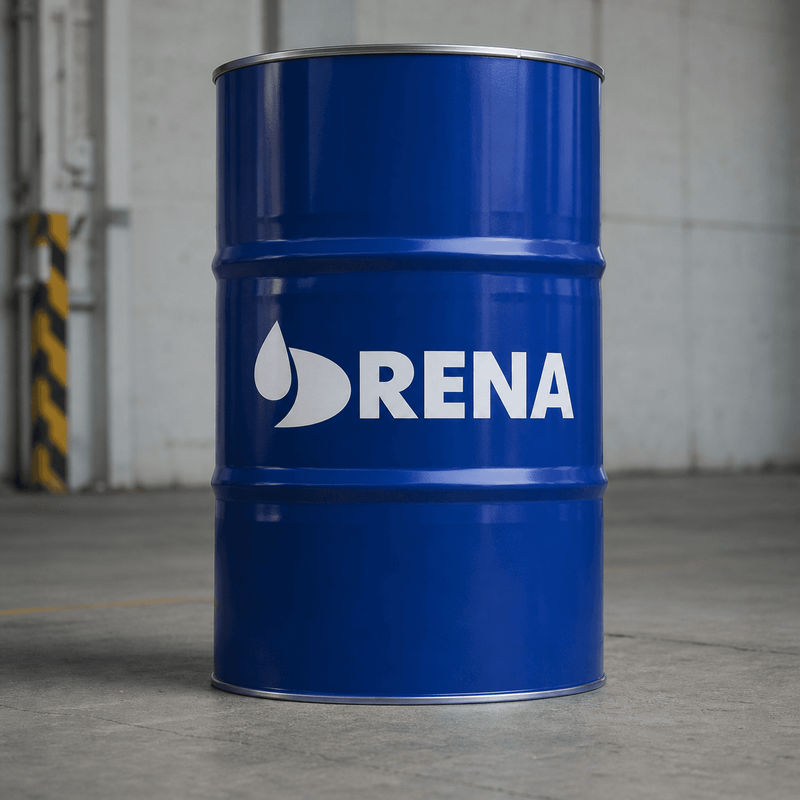

Hydraulic oil RENA IGP-114
Hydraulic oil RENA IGP-114
Extra-thick alloyed hydraulic oil (ISO VG 220, HLP) for industrial presses. Protects against wear and emulsion formation.
Super-heavy hydraulic systems and specific equipment require the use of hydraulic fluids with an increased load-bearing capacity index. RENA IGP-114 is an alloyed hydraulic oil of increased viscosity, designed for the stable operation of systems under extreme pressures. Its balanced complex of anti-corrosion and anti-wear additives secures spools and pumps from abrasive abrasion. The oil quickly deaerates, preventing destructive cavitation. To agree on wholesale orders and technical specifications, call our sales department.
Thick alloyed hydraulic oil of ISO VG 220 class. Kinematic viscosity at 40°C is 195.5 mm²/s. Flash point 230°C. Acid number 1.0 mg KOH/g. Meets the requirements of the ISO HM, DIN 51524-2 (HLP) standard.
Technical Specifications
| Parameter | Value | Test Method |
|---|---|---|
| Kinematic viscosity at 40 °C | 195.5 mm²/s | ASTM D 445 |
| Viscosity index | 90 - | ASTM D 2270 |
| Total acid number (TAN) | ≤1.0 mg KOH/g | ASTM D 664 |
| Ash content | ≤0.2 % | ASTM D 482 |
| Sulfur content | ≤1.0 % | ASTM D 6481 |
| Zinc content | ≥0.04 % | ASTM D 6481 |
| Mechanical impurities content | Absent % | п. 7.3 |
| Water content | Сліди % | ASTM D 95 |
| Density at 20 °C | 0.900 g/cm³ | ASTM D 4052 |
| Pour point | -15 °C | ASTM D 97 |
| Color | 7.0 - | ASTM D 1500 |
| Flash point (open cup) | 230 °C | ASTM D 92 |
| Foaming at 24 °C / stability | 50/5 ml/ml | ASTM D 892 |
| Foaming at 93.5 °C / stability | 50/5 ml/ml | ASTM D 892 |
| Foaming at 24 °C after 93.5 °C / stability | 50/5 ml/ml | ASTM D 892 |
Kinematic viscosity at 40 °C
Value
195.5 mm²/s
Test Method
ASTM D 445
Viscosity index
Value
90 -
Test Method
ASTM D 2270
Total acid number (TAN)
Value
≤1.0 mg KOH/g
Test Method
ASTM D 664
Ash content
Value
≤0.2 %
Test Method
ASTM D 482
Sulfur content
Value
≤1.0 %
Test Method
ASTM D 6481
Zinc content
Value
≥0.04 %
Test Method
ASTM D 6481
Mechanical impurities content
Value
Absent %
Test Method
п. 7.3
Water content
Value
Сліди %
Test Method
ASTM D 95
Density at 20 °C
Value
0.900 g/cm³
Test Method
ASTM D 4052
Pour point
Value
-15 °C
Test Method
ASTM D 97
Color
Value
7.0 -
Test Method
ASTM D 1500
Flash point (open cup)
Value
230 °C
Test Method
ASTM D 92
Foaming at 24 °C / stability
Value
50/5 ml/ml
Test Method
ASTM D 892
Foaming at 93.5 °C / stability
Value
50/5 ml/ml
Test Method
ASTM D 892
Foaming at 24 °C after 93.5 °C / stability
Value
50/5 ml/ml
Test Method
ASTM D 892
